Features
1. Input Voltage DC24V, Single signal (data) control.

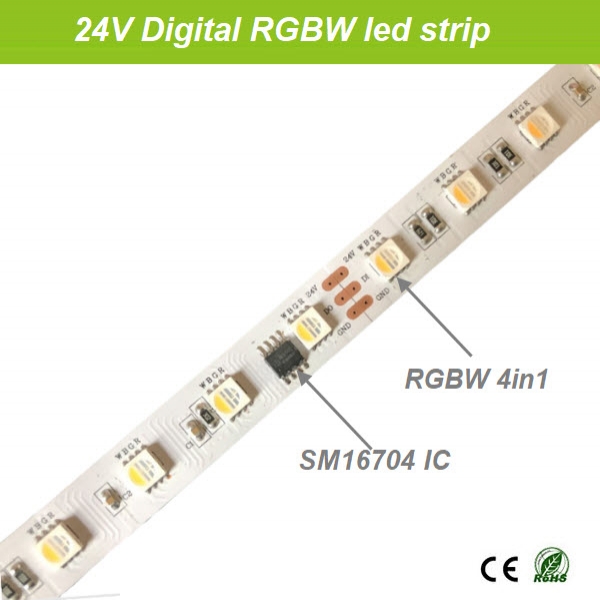

2. External SM16704 IC control,each six leds are programmable.
3. 60leds/m RGB+3000K,RGB+4200K,RGB+6000K available.

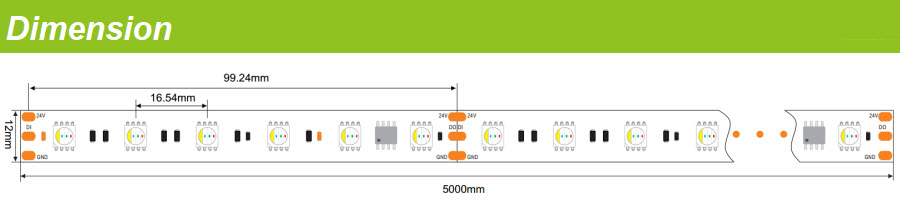

4. 100mm/3.93" intervals cutting point
5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.
.jpg)
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE60RGBW16704A24 GE60RGBW16704B24 GE60RGBW16704C24 GE60RGBW16704D24 |
5000*12*3.0 5000*12*3.5 5000*14*4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050 RGBW 4in1 |
SM16704 External |
60 | 10 | R: 180lm G:360lm B:132lm W:360lm |
120 | 14.4w |
