1. Input Voltage DC12V, single signal (data) control.
2. External WS2818 IC control, SMD5050 RGB Color, Each 3leds addressable.

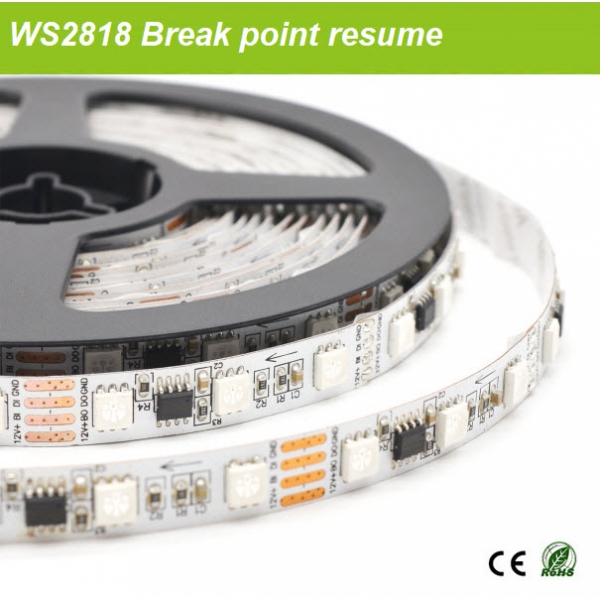

3. Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault IC.
4. 60leds/m available,50mm/1.97" intervals cutting point
5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.
9. Only DI wired to controller‘ data . BI is for the chip‘s breakpoint resume function when we resolder PCB
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE60RGB2818A12 GE60RGB2818B12 GE60RGB2818C12 GE60RGB2818D12 |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V | SMD5050RGB | WS2818 External |
60 | 20 | R: 180lm G:360lm B:132lm Mix W:600lm |
120 | 14.4w |
