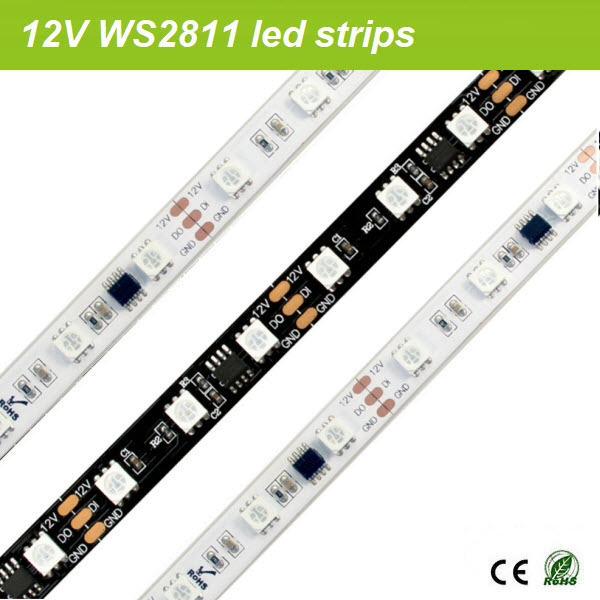

1. Input Voltage DC12V, single signal (data) control.
2. External WS2811 IC control, each three leds are programmable.
3. 30leds/m,48leds/m,60leds/m available,SMD5050,RGB color.
4. 100mm/3.93",62.5mm/2.46",50mm/1.97" intervals cutting point
5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.
Dimension
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE30RGB2811A12 GE30RGB2811B12 GE30RGB2811C12 GE30RGB2811D12 |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V | SMD5050RGB | WS2811 External |
30 | 10 | R: 90lm G:180lm B:64lm Mix W:300lm |
120 | 7.2w |
| GE48RGB2811A12 GE48RGB2811B12 GE48RGB2811C12 GE48RGB2811D12 |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V | SMD5050RGB | WS2811 External |
48 | 16 | R: 144lm G:288lm B:105lm Mix W:480lm |
120 | 11.52w |
| GE60RGB2811A12 GE60RGB2811B12 GE60RGB2811C12 GE60RGB2811D12 |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V | SMD5050RGB | WS2811 External |
60 | 20 | R: 180lm G:360lm B:132lm Mix W:600lm |
120 | 14.4w |
