WS Series IC embedded led

Break Point continuously transmission WS2813

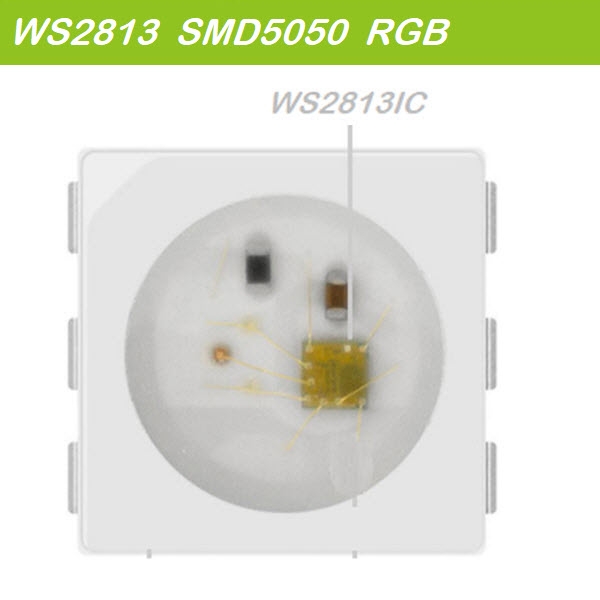

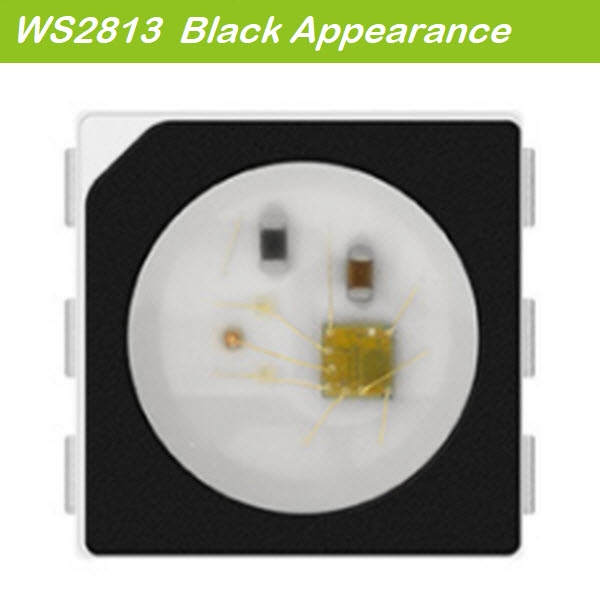

WS2813 is a addressable Programmable component that Control circuit and RGB chip are integrated in a PLCC5050 led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator and a 12V voltage

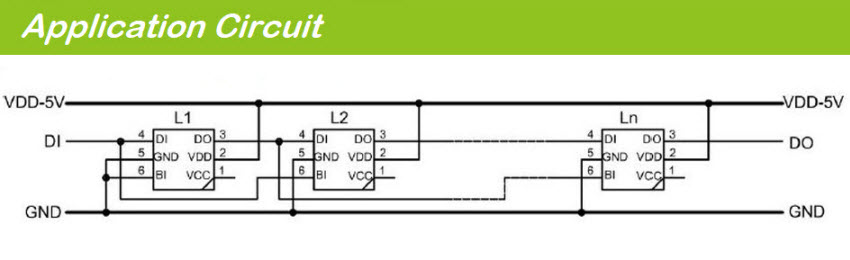

programmable constant current control part.it is with signal break-point continuous transmission function. Any pixels failure
won‘t affect
signal transfer and total emitting effect.

    1. Input Voltage: DC5V, SMD5050, RGB color,WS2811 IC/WS2818IC Protocol
    2. RGB Dice and Micro control circuit are embedded in a PLCC5050 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. 256 Grey level for each color, 16777216 Full color display.
    5. Scan Frequency 2KHZ,  Once Refresh Rate reach 30fps , Then the cascade number is not less than1024Pixels
    6. 800Kbps data transmission speed.
    7.0.1w type and 0.2w type availale
    8. Break-point continuously transmission function.

    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    WS2813A DC5V    WS2811    Built-In SMD5050
    6Pins
    RGB R:620-630
    G:515-525
    B:465-475
         R: 1.0-1.5lm     G:3.0-4.0lm
      B:0.5-1.0m
    120 0.2w 1K/Reel
    WS2813B DC5V     WS2818      Built-In SMD5050
    6Pins
    RGB R:620-630
    G:515-525
    B:465-475
         R: 1.0-1.5lm
        G:3.0-4.0lm
         B:0.5-1.0m
    120 0.2w 1K/Reel
    WS2813C DC5V    WS2811    Built-In SMD5050
    6Pins
    RGB R:620-630
    G:515-525
    B:465-475
         R: 0.4-0.6lm
        G:1.5-2.0lm
          B:0.3-0.5m
    120 0.1w 1K/Reel
     Remark: WS2813 series led with Breakpoint continuous transmission function when one led is ruined
