WS IC embedded led

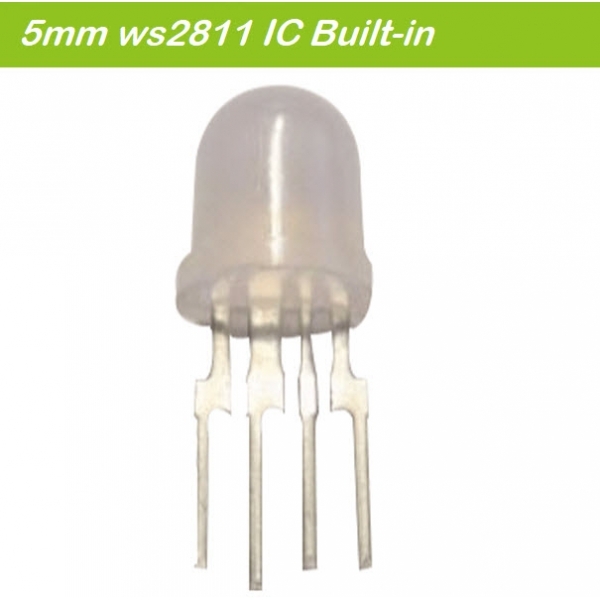

5mm Round ws2811 Pixel led

WS2811-F5 is a addressable Programmable component that Control circuit and RGB chip are integrated in a DIP led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator and a 12V voltage
programmable constant current control part.

    1. Input Voltage: DC5V, 5mm Round, RGB color,WS2811 IC Protocol
    2. RGB Dice and Micro control circuit are embedded in a DIP4 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. 256 Grey level for each color, 16777216 Full color display.
    5. Scan Frequency 2KHZ,  Once Refresh Rate reach 30fps , Then the cascade number is not less than1024Pixels
    6. 800Kbps data transmission speed.

    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    WS2811-F5 DC5V   WS2811    Built-In 5MM diameter
    DIP4
    RGB R:620-625
    G:520-525
    B:460-465
     R: 1.0-1.5lm
    G:3.0-4.0lm
     B:0.5-1.0m
    120 0.2w 500PCS/Bag

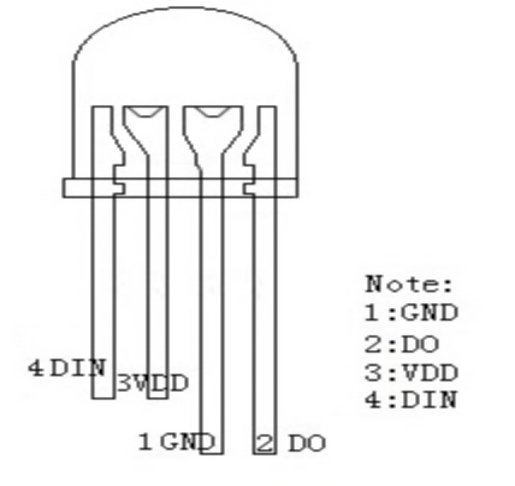

    PIN Define:





    File Name : Format: Size: Download:
