SK Series Chip intergration led

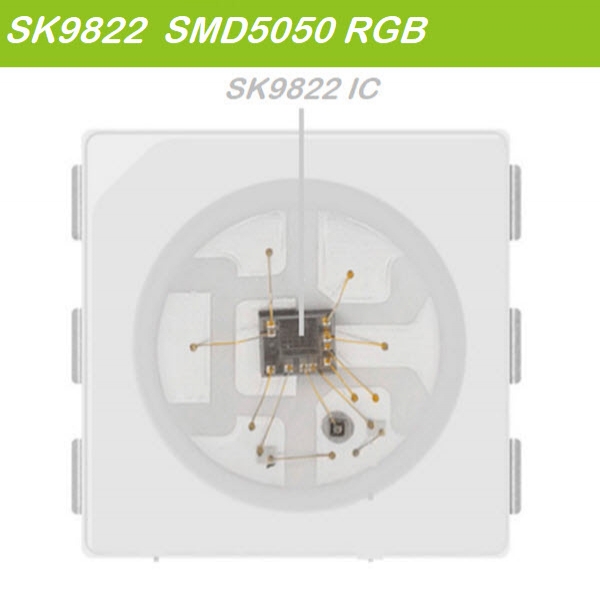

SK9822 Chip buit in colorful led

SK9822 is an intelligent programmable LED light source which
including three-channel (RGB) drive and control circuit and
light-emitting electric circuit. Signal decoding Module,
data buffer,built-in constant current circuit and RC oscillator
are intergrated in control chip; 256-level PWM gray adjustment

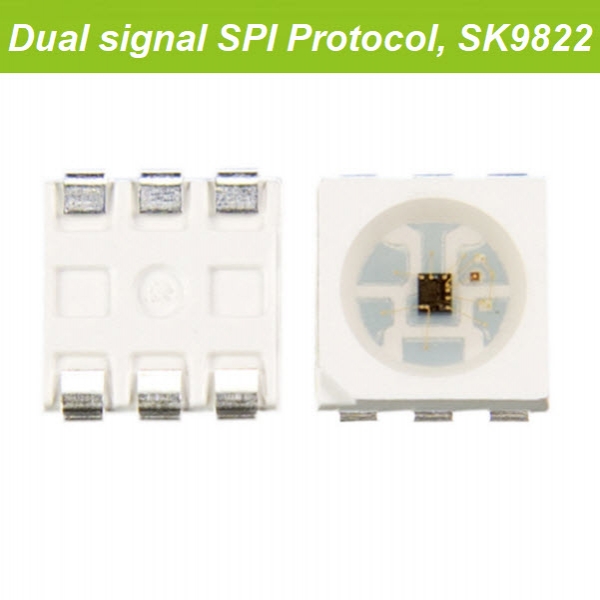

and 32-Level brightness adjustment.Dual signal transmission
mode, Data Signal and CLK signal are adopted to synchronize
the output of the series chips.
    1. Input Voltage: DC5V, SMD5050 , RGB color, SK9822 Protocol
    2. RGB Dice and Micro control circuit are embedded in a PLCC5050 led.
    3. Dimmable brightness 32 level  and 256 PWM gray adjustable for each color
    5. Three-way constant current drive, with signal self-detection function
    6. Serial Data input frequency Max 30MHZ
    7. Dual-wire data transmission, built-in oscillation support uninterrupted PWM output, can maintain static picture
    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    SK9822 DC5V     SK9822     Built-In SMD5050
    6Pins
    RGB R:620-625
    G:520-525
    B:460-465
     R: 1.0-1.5lm
    G:3.0-4.0lm
      B:0.5-1.0m
    120 0.2w 1K/Reel
