SK Series Chip intergration led

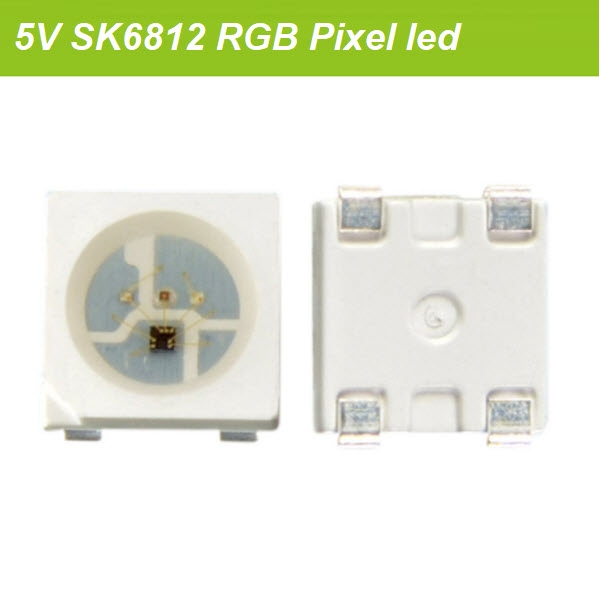

SK6812_RGB Colour_Pixel led

SK6812RGB is a addressable Programmable component that Control circuit and RGB chip are integrated in a PLCC5050 led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator and a 12V voltage
programmable constant current control part.
    1. Input Voltage: DC5V, SMD5050, RGB color, SM16703IC Protocol
    2. RGB Dice and Micro control circuit are embedded in a PLCC5050 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. 256 Grey level for each color, 16777216 Full color display.
    5. Once Refresh Rate reach 30fps, Then the cascade number is not less than 1024Pixels
    6. 800Kbps data transmission speed.
    7.0.1w type and 0.2w type availale

    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    SK6812 DC5V     SM16703     Built-In SMD5050
    4Pins
    RGB R:620-630
    G:520-535
    B:460-475
     R: 0.2-0.5lm
    G:1.0-2.0lm
      B:0.2-0.5lm
    120 0.1w 1K/Reel
    SK6812 DC5V      SM16703       Built-In SMD5050
    4Pins
    RGB R:620-630
    G:515-530
    B:460-470
     R: 1.0-1.5lm
    G:3.0-4.0lm
      B:0.5-1.0m
    120 0.2w 1K/Reel



    File Name : Format: Size: Download:
    Welcome your inquiry, we will reply you within 24 hours.

    *

    *

    *

    *
