SK Series Chip intergration led

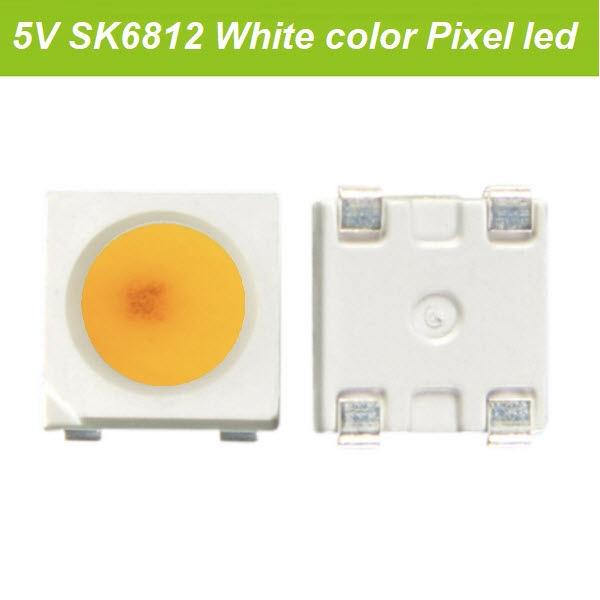

3000K_4000K_6000k addressable White led SK6812

SK6812-W is a addressable Programmable component that Control circuit and led chips are integrated in a PLCC5050 led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator and a 12V voltage
programmable constant current control part.

    1. Input Voltage: DC5V, SMD5050, 3000K/4000K/6000K White color, SM16703IC Protocol
    2. Dice and Micro control circuit are embedded in a PLCC5050 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. Once fresh rate reach 30fps, Then the cascade number is not less than 1024Pixels
    5. 800Kbps data transmission speed.

    Product Model
    M/N Input Voltage IC type Led type Color CCT(K) Luminous/led  Angle Watt/led Package
    SK6812-W DC5V   SM16703    Built-In SMD5050
    4Pins
    white WW:2800-3200
    NW:4000-4500
    W:6000-6500
     WW: 3.0-3.5lm
    NW:3.5-4.0lm
    W:3.5-4.0m
    120 0.2w 1K/Reel



    File Name : Format: Size: Download:
