LED Neon Flex

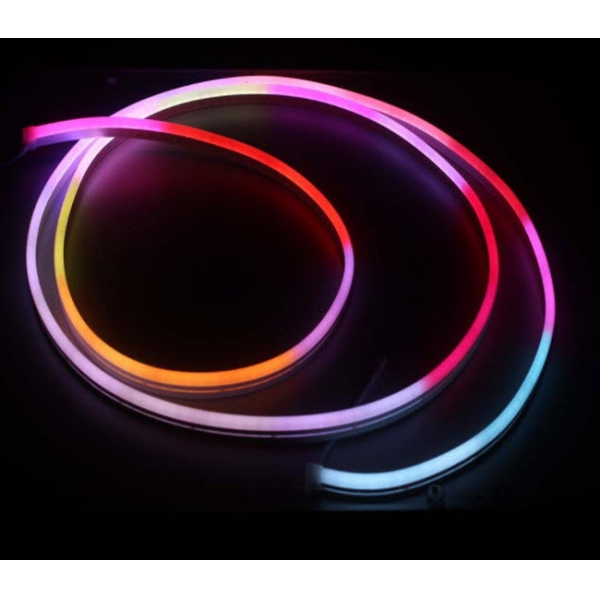

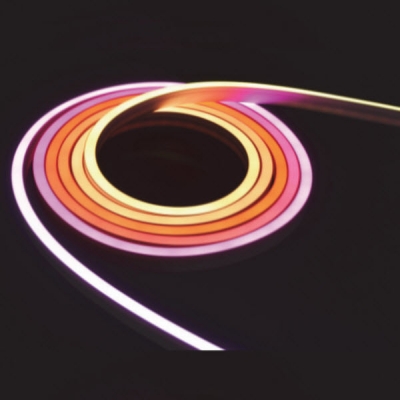

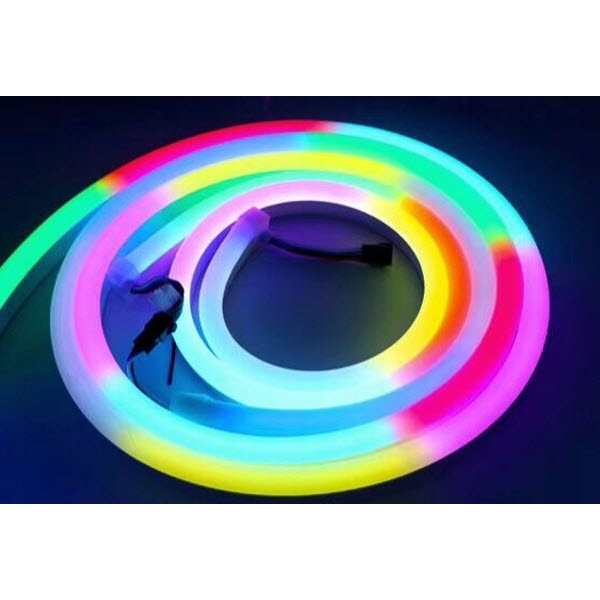

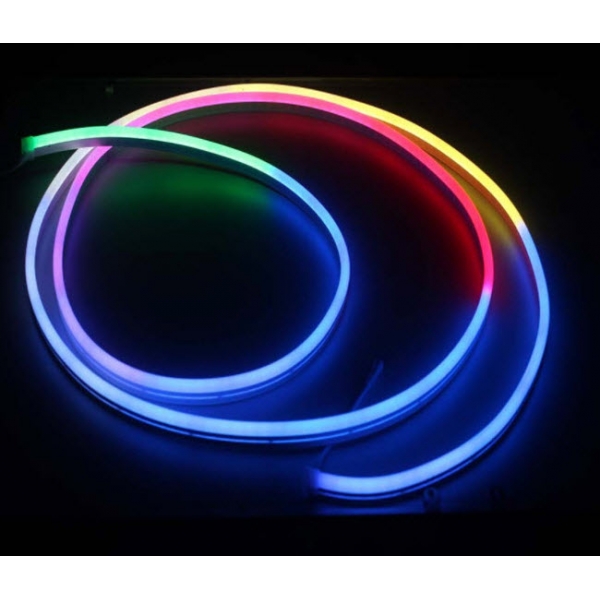

24V Digital led neon tube


1.With the new silicone integrated extrusion molding technique

2.using first-class eco-friendly UV-resistant silicone material

3.Excellent flexibility to shape optionally.

4.Uniform and soft luminance, spot-free.

5.high brightness, even mixture of colors.

    1. Input Voltage DC24V, single signal (Data) control. UCS1903 IC protocol.
    2. 60leds/m, SMD5050, RGB Color. Each six leds are addressable.

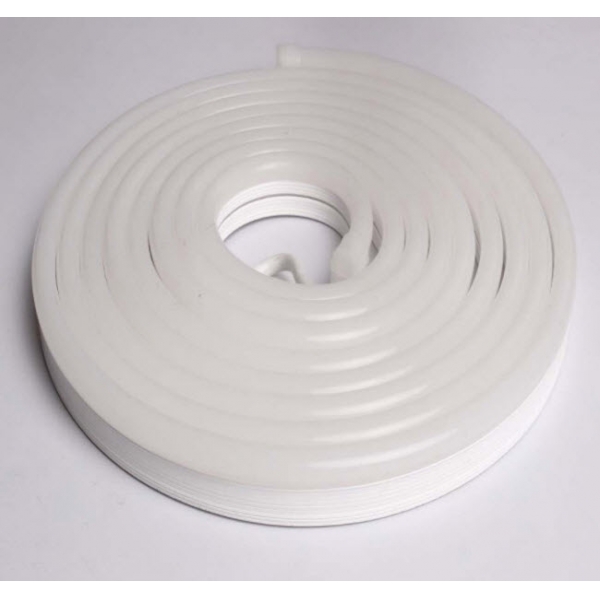

    3. Anti-yellowing and heat resisting 12mm(W)*22mm(H) silicon neon tube available.
    4. 270 degree beam angle,Uniform and soft luminance, no light spot.
    5. 3OZ Thickness Double-layer PCB.  Max 14.4W/M power comsuption.
    6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
    7. Single end feed power, it is 5M/roll.  if feed power both ends, the length is 10M/Roll.
    8. IP67 Waterproof rank, available for extremely terrible outdoor environment
    9.  Two Piece aluminium alloy clasps per meter
    10. Controller System:SD controller , DMX controller , Artnet.


    Product Model
    M/N Size/mm Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m IP Rate
    GE60RGB1903A1Ne L5000*W12*H22   DC24V SMD5050RGB UCS1903
    External
    60 10 R: 180lm
     G:360lm    B:132lm
    Mix W:600lm
    270 14.4w IP67
    GE60RGB1903A7Ne L5000*W10*H20  DC24V SMD5050RGB UCS1903
    External
    60 10 R: 180lm
     G:360lm    B:132lm
    Mix W:600lm
    120 14.4w IP67
    GE60RGB1903A3Ne L5000*W9.5*H18  DC24V SMD5050RGB UCS1903
    External
    60 10  R: 180lm  G:360lm   B:132lm
    Mix W:600lm
    120 14.4w IP67
