GE series IC Built-in led

GE8822 Chip built in led

1. Top SMD internal integrated high quality external control line serial cascade constant current IC, 5V application;
2. Control circuit and the RGB chip integrated in SMD 5050 components, to form a complete external control pixel, make the color mix uniformity and consistency;
3. The two-wire synchronous control;
4.The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;
5. The three constant current drive, self detection function specific signal
6. The maximum frequency of 30MHZ serial data input
7. The double data transmission, built-in support uninterrupted oscillation PWM output,can maintain a static image.

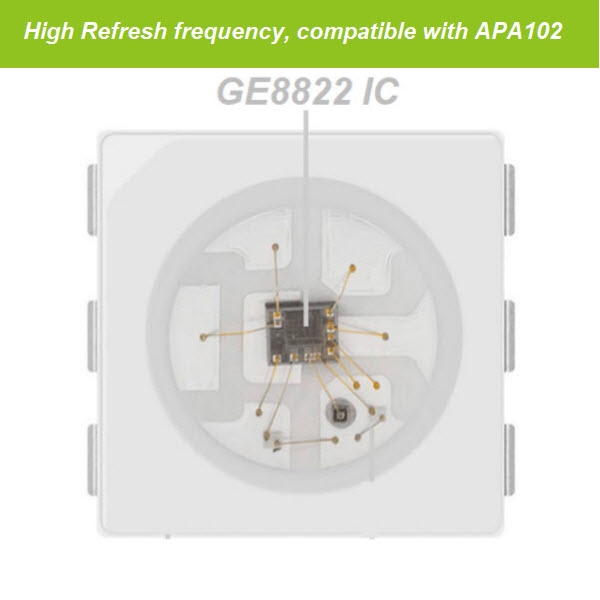

    GE8822 is a dual signal transmission three channel (RGB) driving intelligent control circuit and the light emitting circuit in
    one of the LED light source control.
    Soldering 99.99 percent high-purity gold wire with epsitar chips, encapsulate with high
    quality moisture-proof silicon glue.
    Comparing to similar products in the market, our Products are high light efficiency and long life,The refresh frequeceny is faster than SK9822.


    Product Model
    M/N Input Voltage IC type Led type Chip Color Wave length(nm) Luminous/led Angle Watt/led Package
    GE8822 DC5V GE8822
    Built-in
    SMD5050
    6Pins
    Epistar   9mil*9mil RGB R:620-623
       G:517.5-520
       B:467.5-470
      R: 2.0-2.5lm
    G:5.0-6.0lm
       B:1.5-2.0lm

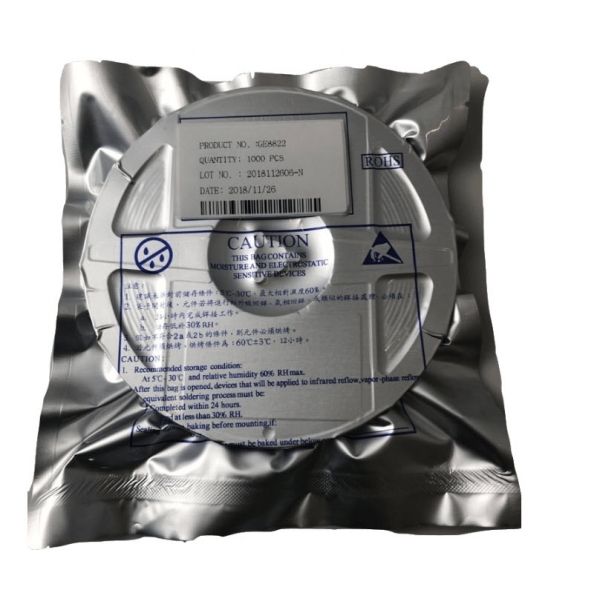

    120 0.25w 1K/Reel
    Remark: GE8822 IC Protocol is compatible with SK9822 /APA102

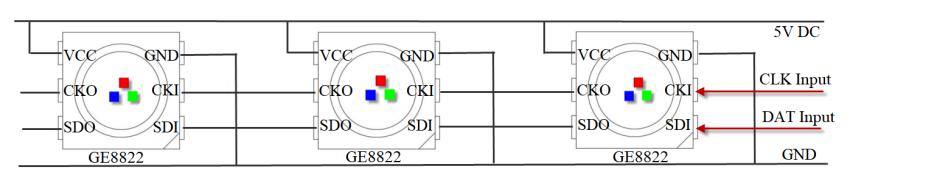

    Application circuit
