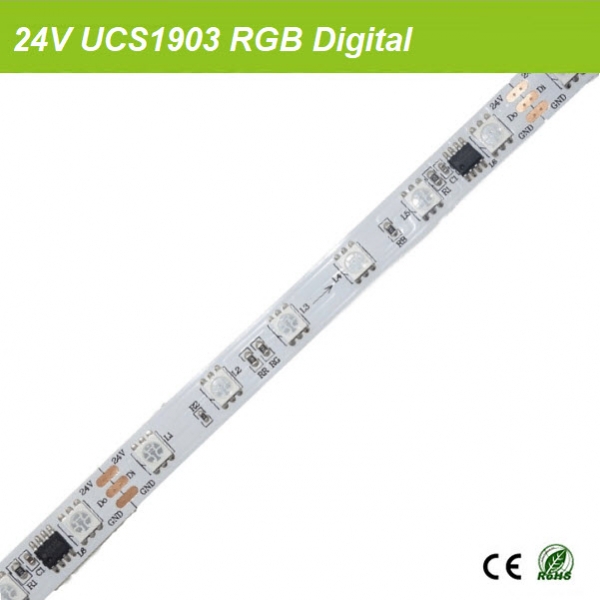

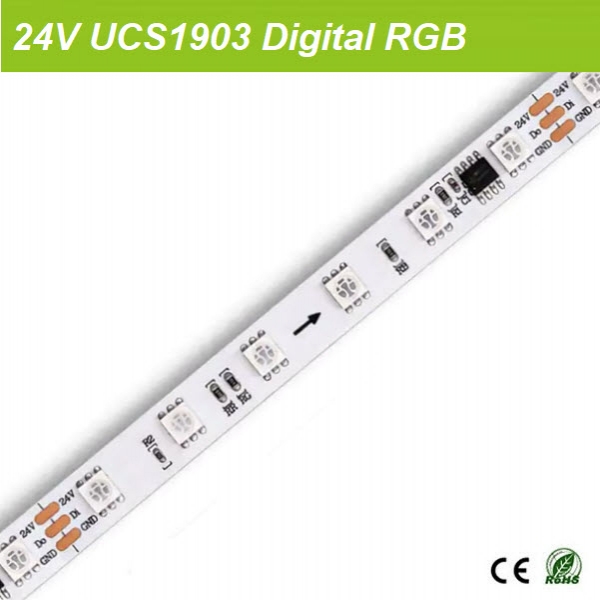

1. Input Voltage DC24V, single signal (data) control. Cheap price and High reliability.

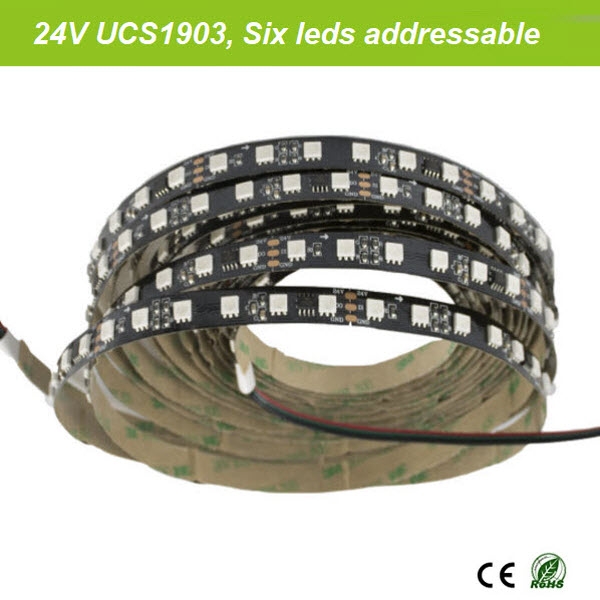

2. External UCS1903 IC control, each six leds are programmable.
3. 48leds/m,60leds/m,72leds/m available,SMD5050,RGB color.
4. 125mm/4.92",100mm/3.94",83.3mm/3.28"intervals cutting point
5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE48RGB1903A24 GE48RGB1903B24 GE48RGB1903C24 GE48RGB1903D24 |
5000*12*3.0 5000*12*3.5 5000*14*4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050RGB | UCS1903 External |
48 | 8 | R: 144lm G:288lm B:105lm Mix W:480lm |
120 | 11.52w |
| GE60RGB1903A24 GE60RGB1903B24 GE60RGB1903C24 GE60RGB1903D24 |
5000*12*3.0 5000*12*3.5 5000*14*4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050RGB | UCS1903 External |
60 | 10 | R: 180lm G:360lm B:132lm Mix W:600lm |
120 | 14.4w |
| GE72RGB1903A24 GE72RGB1903B24 GE72RGB1903C24 GE72RGB1903D24 |
5000*12*3.0 5000*12*3.5 5000*14*4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050RGB | UCS1903 External |
72 | 12 | R: 216lm G:432lm B:159lm Mix W:720lm |
120 | 16.9w |
Dimension
